Equinox

Edition

We’ve played almost all of the pedals that have been released by Spaceman Effects, and each one has been a real revelation to the pedal world.

- Mike B, Pedal of the Day

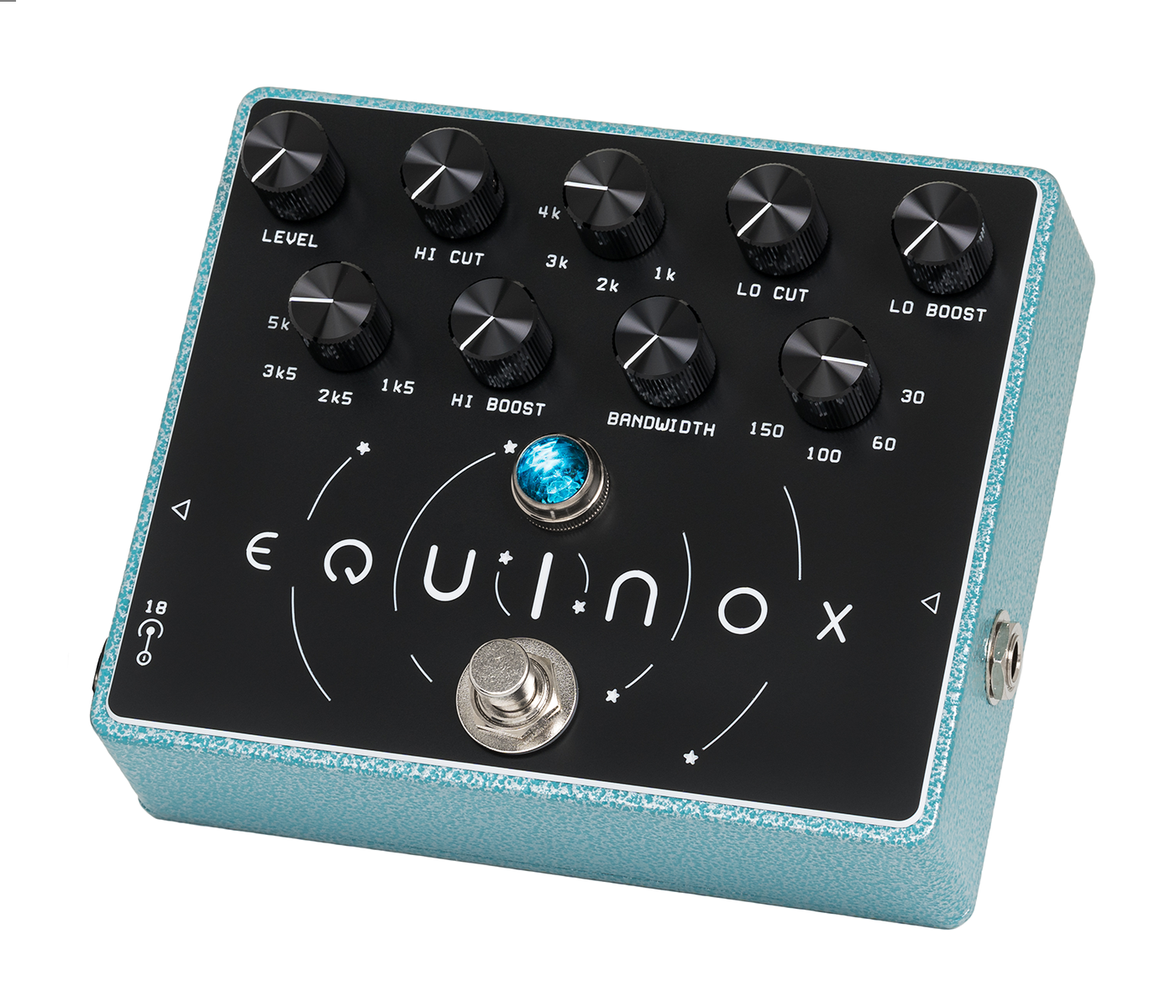

Equinox

Spaceman is excited to present an inventive new limited edition EQ. The Equinox packs the power of an iconic studio rack with an abundance of innovations rarely seen in a package this portable. Its architecture features carefully crafted gain staging and highly interactive frequency bands with interdependent cut and boost sections, yielding a circuit custom tuned for tons of vintage vibe. This unique multi-band EQ gives you massive headroom, surgical tone shaping control, and limitless sound design capabilities. Use Equinox in any chain, anywhere - be it your pedalboard, tabletop, or studio - and unlock infinite sonic possibilities.

LEARN MORE

Videos



Equinox

INTRODUCING THE EQUINOX

The Equinox is an expansive tone shaping tool inspired by studio equalizers of the past. Spaceman has thoughtfully analyzed these classic circuits to lovingly craft a modest form factor, instrument level focused design. The core circuit features an abundance of irregular options that have rarely been applied to traditional stompbox EQs. The atypical multi-band configuration, with custom filter ranges, are capable of complex and interactive frequency responses. Discrete high-headroom input and output stages make it suited to handle a variety of input sources, while providing tons of warm vintage character.

The Equinox is divided up into 3 sections: One LO band, with BOOST and CUT capabilities, one HI CUT band, and one HI BOOST band. The LO band, and HI CUT band are first order filters, while the HI BOOST band is a second order filter. A number of cool tricks can be accomplished by carefully mixing the various cut and boost parameters. For example, using both the CUT and BOOST parameters of the LO band can create large scoops or shelves similar to using 2 sections of a parametric EQ giving you a tight, focused, yet thunderous bass response. By exploring these interactions one can realize a plethora of frequency rolloff shapes to surgically alter your signal source in exciting and dynamic ways. Placing the Equinox at different spots in your chain gives you the ability to tweak your sonic soundscape as subtly or as dramatically as you like.

The Equinox frequency bands
EQUINOX FEATURES
  • Studio quality EQ made explicitly for instrument level signals
  • Dedicated Cut and Boost bands with interleaving center frequencies
  • Discrete design with hand soldered through-hole construction
  • High headroom 18V operation
  • Well suited to guitar, bass, keyboard, and any instrument you can throw at it
  • The Comet Edition Equinox is limited to 222 units, and features a hand hammered nameplate and signed documentation.
TRULY HAND CRAFTED

Hand-wired and built in Portland, Oregon, the Equinox features mechanical true-bypass switching with a heavy-duty latching footswitch. On top of the cast-aluminum enclosure sits a durable, engraved vinyl faceplate and jewel indicator light. This pedal is built to last a lifetime, both on Earth or in the vacuum of space.


Settings from Command Central

Warm and Fat

Presence

Hot Knife


TECHNICAL SPECIFICATIONS

Width:

5.72 inches / 145 mm

Depth:

4.77 inches / 121 mm

Height:

2.24 inches / 57 mm

Weight:

17 ounces

Input Resistance:

500K Ohm

Bypass Current Draw:

2mA

Engaged Current Draw:

4mA

Input Voltage:

18V DC, negative center via the 2.1mm jack
